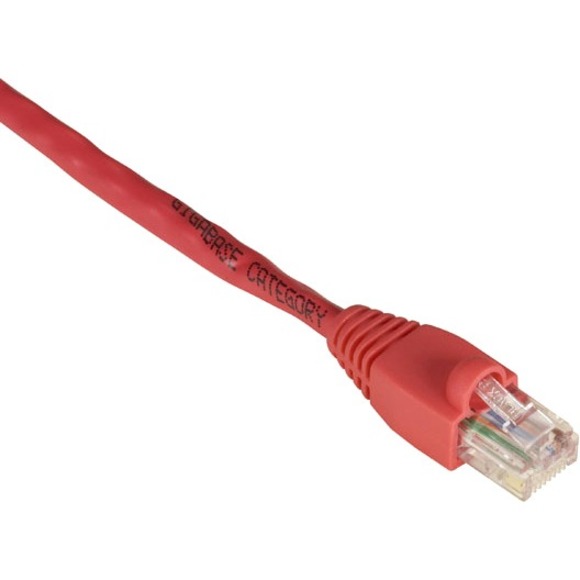

Black Box Cat. 5e UTP Crossover Cable

SKU: BBNEVCRB830006

$8.85

Additional information

Categories,
Weight0.05 lbs
Dimensions8 × 7.5 × 0.5 in
Manufacturer

Brand Name

Black Box

Product Type

Network Cable

Product Color

Red

Jacket Material

Polyvinyl Chloride (PVC)

Country of Origin

China

Color Family

Red

General Information

ManufacturerBlack Box Corporation
Manufacturer Part NumberEVCRB83-0006
Manufacturer Website Addresshttp://www.blackbox.com
Brand NameBlack Box
Product LineGigaBase
Product NameGigaBase Cat.5e UTP Patch Network Cable
Marketing Information

Black Box GigaBase Premium CAT5e Crossover Patch Cables exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your data. They are perfect for making switch-to-switch, computer-to-computer or other crossover connections.

Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e specification, greatly reducing impedance, structural return loss and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.

These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation.

Packaged Quantity1 Each
Product TypeNetwork Cable

Physical Characteristics

Color FamilyRed
Product ColorRed
Jacket MaterialPolyvinyl Chloride (PVC)

Miscellaneous

Additional Information
  • Gold-plated contacts are designed for an insertion/extraction life of 1000 cycles
  • Enhanced performance parameters and electrical characteristics
  • Tuned-plug design maintains a tighter twist and reduces noise
  • Stranded conductors for short runs
  • Specially designed for use with other Giga Base components
  • Superior construction offers significant headroom
  • Improved near-end crosstalk (NEXT) compared to standard CAT5 cable
  • Attenuation (Maximum) 24.2 dB/100 m (328.1 ft.) @ 100 MHz
  • 49.3 dB/100 m (328.1 ft.) @ 350 MHz
  • Frequency Up to 350 MHz
  • NEXT (Minimum) 40.3 dB/100 m (328.1 ft.) @ 100 MHz
  • 32.2 dB/100 m (328.1 ft.) @ 350 MHz
  • PS-NEXT (Minimum) 38.3 dB/100 m (328.1 ft.) @ 100 MHz
  • 30.2 dB/100 m (328.1 ft.) @ 350 MHz
  • Return Loss (Minimum) 20.1 dB/100 m (328.1 ft.) @ 100 MHz
  • 16.3 dB/100 m (328.1 ft.) @ 350 MHZ
Certifications & StandardsEIA/TIA-568A , TIA/EIA-568-B.2
Environmentally FriendlyYes
Country of OriginChina
